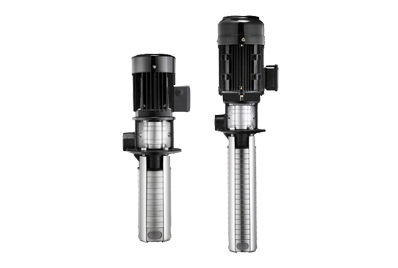

PRODUCT DETAILS

Features

WIDE RANGE OF APPLICATION

Turning	Grinding	Granite
Boring	Filtration	Fountains
Drilling	Circulation	Washing
Milling	Printing	Heat treatment
Cutting	Conveyor	Oil Transfer
Sawing	Cooling

PERFORMANCE DATA OF JMC - 2

PUMP MODEL	MOTOR POWER KW/HP/LENGTH		FLOW IN LPM	17	18	25	32	38	45	50	55
JMC 2-20	0.37 / 0.5	142	HEAD IN METER	18	17	16	15	13	12	10	8
JMC 2-30	0.37 / 0.5	160		27	26	24	22	20	18	15	12
JMC 2-40	0.75 / 1	178		26	35	33	30	26	24	20	16
JMC 2-50	0.75 / 1	196		45	43	40	37	33	30	24	20
JMC 2-60	0.75 / 1	214		53	52	50	45	40	36	30	24
JMC 2-70	0.75 / 1	232		63	61	57	52	47	41	35	28
JMC 2-90	1.1 / 1.5	268		80	78	73	67	67	54	45	37
JMC 2-110	1.1 / 1.5	304		98	95	89	82	73	64	54	44
JMC 2-130	1.5 / 2	340		116	114	106	98	89	78	65	52
JMC 2-150	1.5 / 2	376		134	130	123	112	100	90	73	60
JMC 2-180	2.2 / 3	430		161	157	148	136	121	108	91	76
JMC 2-220	2.2 / 3	502		198	192	180	165	148	130	110	90
JMC 2-260	3.0 / 4	574		232	228	214	198	179	158	130	110

PERFORMANCE DATA OF JMC - 4

PUMP MODEL	MOTOR POWER KW / HP		FLOW IN LPM	25	33	50	64	80	96	112	128
JMC 4-20	0.37 / 0.5	160	HEAD IN METER	19	18	17	15	13	10	8	6
JMC 4-30	0.75 / 1	187		28	27	26	24	20	18	13	10
JMC 4-40	0.75 / 1	214		38	36	34	32	27	24	19	13
JMC 4-50	1.1 / 1.5	241		47	45	43	40	34	31	23	17
JMC 4-60	1.1 / 1.5	268		56	54	52	48	41	37	28	20
JMC 4-70	1.5 / 2	295		66	63	61	56	48	43	33	24
JMC 4-80	1.5 / 2	322		74	72	70	64	55	50	38	27
JMC 4-100	2.2 / 3	376		96	90	87	81	71	62	48	34
JMC 4-120	2.2 / 3	430		114	108	104	95	85	75	58	41
JMC 4-140	3 / 4	484		136	126	122	112	101	89	78	55
JMC 2-160	3 / 4	538		152	144	140	129	115	101	78	55
JMC 4-190	3.7/5	619		183	171	168	153	137	122	93	67
JMC 4-220	3.7/5	700		211	200	192	178	160	138	108	79
