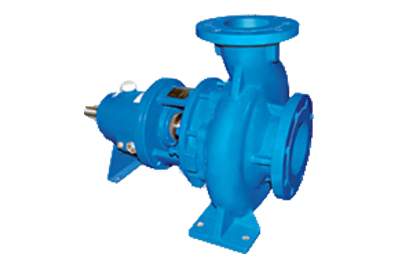

JCP
Operating Range
| Capaicty |
Up to 1500 M3/hr |
| Head |
Up to 150 mtr |
| Discharge Size |
Dn 32 to 300 mm |
| Temperature |
Up to 350C |
| Speed |
Up to 3500 rpm |
| Pressure |
Up to 15 Kg/cm2 |
Applications
- Chemical, Refinery, Petrochemical & Process.
- Pulp & Paper, Sugar, Starch industries.
- Fertilizer, Textiles, Laminate, Steel industries.
- Air-condition plants, Fire Fighting application.
- Power plants, Desalination Plants, Sea Water.
- Marine, Irrigation, Building service, Food industries.
- Salt, Rubbe, General industrail services etc....
Materials
- SS-316, SS-316 L, SS-304, SS-304 L
- Duplex stainless steel
- Super duplex stainless steel
- Cast bronze, cast steel, cast Iron
- Hastalloy - B & C, Alloy-20 etc.....
Features
- Back pull out design
- Conform to iso 2858 dimensions
- High efficiency hydraulic design
- Heavy duty shaft, sleeve and bearings
- Low NPSH
- Noise and maintenance free
- Single and double mechanical seal
- Steady head and capacity
- One roller bearing on pump end, two angular contact ball bearing with oil lubricated.
- Serveral flange drilling options according to valid standards.
- Suitable with V-belt drive or direcct coupled with a motor.
