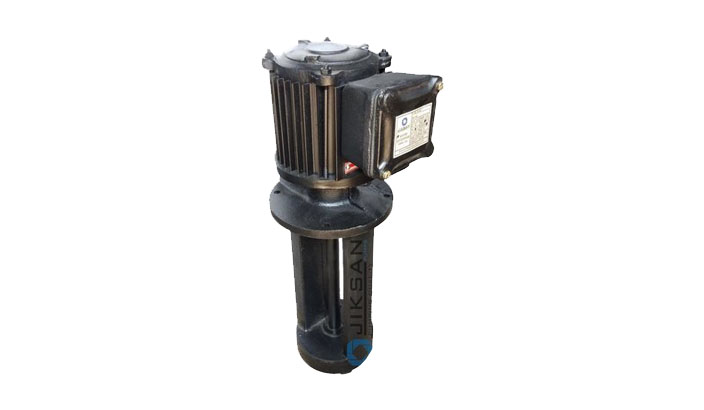

JC Single Stage Coolant Pumps
Features
- Available in very wide range.
- High Flexibility of design.
- Availability in any type of material like cast iron, SS-316,SS-304,bronze,Alloy – 20 Etc..
- Balanced shaft & rotor with excellent grade stamping and wire so highly efficient motor.
- Totally noiseless operation..
- Available in any length and for any liquid.
- Extruded powder coated motor body (up to 1 HP).
- No shaft seal (100 % Maintenance free).
- Semi open impellers (ensure free passage of solids and chips)
- Large stock, earliest delivery.
WIDE RANGE OF APPLICATION
| Turning |
Grinding |
Granite |
| Boring |
Filtration |
Fountains |
| Drilling |
Circulation |
Washing |
| Milling |
Printing |
Heat treatment |
| Cutting |
Conveyor |
Oil Transfer |
| Sawing |
Cooling |
|
PERFORMANCE CHART OF JC SERIES
| MODEL |
IMME. DEPTH (in mm.) |
OUTLET SIZE |
KW/HP |
Head in meters VS LPM |
|
|
|
|
2 |
4 |
6 |
8 |
10 |
12 |
14 |
| JC 25 |
120/170/220 |
20 mm |
0.08 KW / 0.1 HP |
25 |
10 |
0 |
0 |
0 |
0 |
0 |
| JC 40 |
120/170/220 |
20 mm |
0.12 KW / 0.15 HP |
40 |
25 |
0 |
0 |
0 |
0 |
0 |
| JC 63 |
120/170/220/350 |
20 mm |
0.18 KW / 0.25 HP |
63 |
40 |
0 |
0 |
0 |
0 |
0 |
| JC 80 |
220/270/600 |
20 mm |
0.18 KW / 0.25HP |
80 |
60 |
30 |
0 |
0 |
0 |
0 |
| JC 100 |
170/220/270/350/600 |
25 mm |
0.25 KW / 0.33 HP |
100 |
80 |
65 |
0 |
0 |
0 |
0 |
| JC 160 |
170/220/270/ 350/600 |
25 mm |
0.37KW / 0.5 HP |
160 |
140 |
120 |
75 |
15 |
0 |
0 |
| JC 250 |
220/270/350/ 440/600 |
40 mm |
0.75KW / 1.0 HP |
250 |
245 |
200 |
130 |
80 |
0 |
0 |
