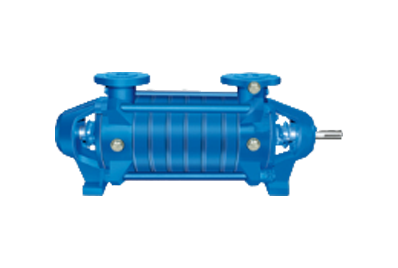

JHMP
Operating Range
| Capaicty |
Up to 75 M3/hr |
| Head |
Up to 280 mtr |
| Discharge Size |
Dn 32 to 65 mm |
| Temperature |
Up to 140°C |
| Speed |
Up to 3500 rpm |
| Pressure |
Up to 28 kg/cm |
Applications
- Mine - Dewatering & Descaling.
- Boiler feed water service.
- High pressure application in Pulp & Paper mills.
- General Water & Fire - Fighting systems.
- Main & Auxiliary condensate extraction.
- Sprinkler Irrigation.
- Filter Press Washing.
- Water supply to high raise buildings
Materials
- SS-316, SS-316 L
- SS-304, SS-304L
- Cast bronze
- Cast steel
- Cast iron etc.....
Features
- Axial thrust compensated by balancing drum.
- Barrel type construction.
- Multi stage with single suction die casting closed impeller.
- Heavy duty ball bearings capable to carry thrust load on either direction. grease lubricated bearing for longer life.
- Un-cooled soft-packing are provided with sealing connection on a suction side. for higher pumped media temperatures, a stuffing box can be provided with cooling cover facilitating the external cooling.
- All the flanges are faced and drilled as per din standards.
- Pump designed to drive by an electric motor through flexible coupling. direction of rotation is a clock wise viewed from drive ends. suction is nearer to coupling & discharge at other end.
