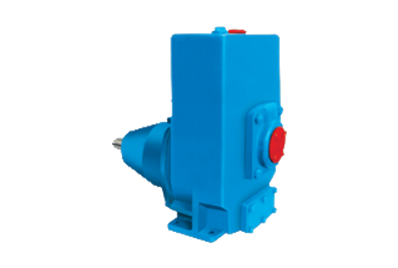

JSMP
Operating Range
| Capaicty |
Up to 75 M3/hr |
| Head |
Up to 48 mtr |
| Discharge Size |
Dn 32 to 280 mm |
| Temperature |
Up to 90°C |
| Speed |
Up to 3500 rpm |
| Pressure |
Up to 4.8 kg/cm2 |
Applications
- Pier, Excavations, Pits, Pot-holes etc., Grampanchayat, Municipalities, Public Health Departments, Large Housing Colonies, industries like Chemical, Pharmaceuticals, Food, Cement, Paper, Sugar, Salt, Steel & Other for Liquid Cargo from Freighter, Barges.
- Mobile machinery - Cooling Water For Marine Engines & Shovels.
- Civil construction dewatering foundations, Trenches & Pits, Filter Press Feeding, ETP, STP, Waste Water Treatment Plant.
- Dewatering, Mud, Marine, Effluent, Hotel, Loading & Transfer of Oils, Spirits, Swimming Pools, Gas, Oils, Engine cooling.
- Vessels, Industrial-pumping Petroleum products, Chemical.
- Public utilities-sewage Pumping.
Materials
- SS-316, SS-316 L, SS-304, SS-304L
- Duplex Stainless Steel, Super Duplex Stainless Steel
- Cast Bronze, Cast Steel, Cast Iron
- Hastalloy - B & C, Alloy - 20 etc.....
Features
- Non-clogging designed for high efficiency. Semi open impeller.
- Heavy duty built in volute having self priming features and integrally cast with base from closed grained C.I. Castings.
- Quick automatic self priming action.
- No foot valve required. No priming of suction pipe line.
- Perfect sealing assured by high quality mechanical seal which cannot run dry because of internal oil reservoirs.
- Graded casting & SS shaft, increase service life.
- Bearings greased for life, save external lubrication. Minimum need for inspection & maintenance.
- Drive options of electric motor, coupled or belt-drive.
Mechanical Seal Option
- STV (Carbon v/s Ceramic / Tc with NBR Elastomer)
- CCV (Carbon v/s Ceramic / Tc with Viton Elastomer)
- CCT (Carbon v/s Ceramic / Tc with PTFE Elastomer)
