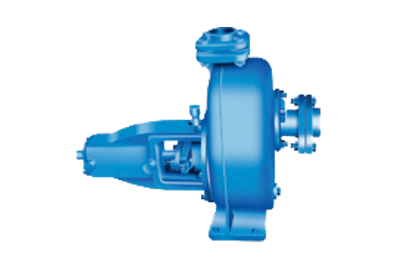

JSPP
Operating Range
| Capaicty |
Up to 650 M3/hr |
| Head |
Up to 50 mtr |
| Discharge Size |
Dn 40 to 200 mm |
| Temperature |
Up to 80°C |
| Speed |
Up to 3500 rpm |
| Pressure |
Up to 5 kg/cm2 |
Applications
- Pier, Excavations, Pits, Pot-holes etc., Grampanchayat, Municipalities, Public Health Departments, Large Housing Colonies, industries like Chemical, Pharmaceuticals, Food, Cement, Paper, Sugar, Salt, Steel & Other for Liquid Cargo from Freighter, Barges.
- Mobile machinery - Cooling water for Marine Engines & Shovels.
- Civil construction dewatering foundations, Trenches & Pits, Filter Press Feeding, ETP, STP, Waste Water treatment plant.
- Dewatering, Mud, Marine, Effluent, Hotel, Loading & Transfer of Oils, Spirits, Swimming Pools, Gas, Oils, Engine cooling.
- Vessels, Industrial-pumping Petroleum products, Chemical.
- Public utilities-sewage pumping.
Materials
- SS-316, SS-316 L, SS-304, SS-304L
- Duplex Stainless Steel, Super Duplex Stainless Steel
- Cast Bronze, Cast Steel, Cast Iron
- Hastalloy - B & C, Alloy - 20 etc.....
Features
- Non-clogging designed for high efficiency. Semi open type & are hand finished for perfect smooth flow.
- Heavy duty built in volute having self priming features & integrally cast with base from closed grained C.I. castings.
- Companion flanges are supplied along with pumps.
- Long life due to replaceable wearing parts.
- Quick automatic self priming action.
- Repairs possible without disturbing the pipe connection.
- Suitable for motor/engine, portable when fitted on trolley/trailer.
- No foot valve required. no priming of suction pipe line.
- Deep gland box used with graphite packing are lubricated by lantern ring with grease.
